Bolondi XC061E 3000 PSI IBC Cleaning Head Electric Powered Self Spinning | |
Material: | aisi 316 |
Flow: | max 60 l/min 16 us gpm |
Pressure: | 200 bar / 3000 psi |
Temperature: | 90°C. - 194°F. |
Spinning speed: | fast |
Filter: | 700 Micron |
Spray pattern: | cleaning sector 360° |
Min. pass through hole | 76 mm |
Nozzles: | 2 - 4 |
Electric motor: | 24 volt |
Complete cycle time: | 108 Seconds |
Weight: | 7.5 Kg / 16.5 lbs |

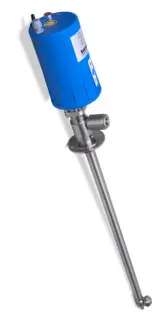

Volumetric Rotating Cleaning Head with Electric Motor and Full Rotation Control
The XC061-E is a volumetric rotating cleaning head designed for cleaning bins, mixers, preparation vessels, and industrial machinery, ideal for closed containers where effective and controlled internal coverage is essential.
It is particularly suitable for the pharmaceutical, food, cosmetic, and chemical industries, where precision, repeatability, and reliability are critical requirements.
Advantages for the operator
- Operating pressure up to 200 bar
- Flow rate up to 60 l/min
- Adjustable rotation speed via air pressure
- Pneumatic motor independent from water flow
- Customizable lance based on vessel depth
- Configurable with 2 or 4 nozzles
- Exposed nozzles selected according to application
The ability to customize both lance length and nozzle configuration makes the XC061E highly flexible and effective across a wide range of applications.
Contact our Bolondi Team
Every system has unique requirements.
Our Bolondi team can support you in:
- defining the optimal length and configuration
- integrating the XC061E into your existing system
- developing fully customized solutions
Contact our Bolondi team to design the most suitable cleaning system for your application.
Installation, Maintenance and Certifications
The XC061E is easily integrated into existing equipment.
It does not require any lubrication, and maintenance is limited to standard wear components, reducing operational costs and downtime.
Supplied with:
- CE certification
- ATEX certification
If you are looking for a volumetric rotating cleaning head with pneumatic motor, adjustable speed, and operating pressure up to 200 bar, the XC061E provides a highly controllable, flexible, and safety-compliant solution.
The Bolondi team is available to support you in selecting the most suitable configuration or developing custom solutions tailored to your process requirements.
