Bolondi RT111-AA Retractable Flush-Mounted Cleaning Head Water Powered Self Spinning | |
Material: | aisi 316 fda epdm peek |
Flow: | 10 -31 lt/min 2.64 - 8.2 usgpm |
Pressure: | 1 - 8 bar / 116 psi |
Temperature: | 90C. - 194F. |
| Water inlet connection | 1-1/2" Tri-clamp |
Filter: | no |
Spray pattern: | see below |
Min. pass through hole | 45mm |
Nozzles: | 7 x #3.0 |
Weight: | 2.4 Kg / 5.3 lbs |

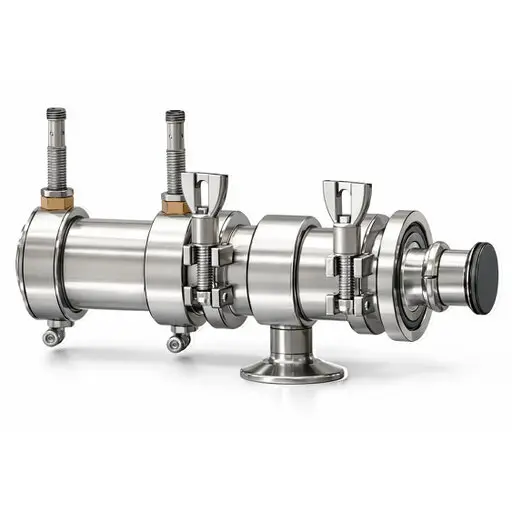

Linear Motion Retractable Rotating Cleaning Head for Flush-Mounted Installation
The RT111-AA is a rotating cleaning head with linear motion, specifically designed for cleaning machine interiors, pipelines, hoppers, and screw conveyors, where it is essential that the cleaning device does not interfere with the product during production.
Its key feature is the ability to be installed flush with the wall of the equipment to be cleaned, ensuring full compliance with cGMP requirements and seamless integration into the production process.
It is particularly suitable for the food, pharmaceutical, and cosmetic industries, where hygiene, process integration, and zero product interference are critical.
Why choose RT111-AA
In many industrial applications, the cleaning head must not protrude into the process area or come into contact with the product during operation.
The RT111-AA is specifically engineered for this purpose: during production, it remains fully retracted and flush with the wall.
It operates exclusively using water pressure, without the need for motors or external power sources.
This results in:
- simplified system design
- fewer components
- reduced risk of failure
It is the ideal solution for operators who:
- need to clean pipelines, hoppers, screw conveyors, or machine interiors
- require a flush-mounted installation
- operate in environments compliant with cGMP standards
Advantages for the operator
- Flush-mounted installation for maximum process integration
- No interference with the product during production
- Operates solely with pressurized water
- Minimalist design with very few components
- Low maintenance requirements
Main Technical Features
- Radial inlet connection
- Axial actuation driven exclusively by water pressure
- Flow rate up to 31 l/min
- Operating pressure up to 8 bar
- Designed for integration during system design phase
Installation, Maintenance and Certifications
The RT111-AA is easy to integrate during the design or modification phase of equipment.
It is not easily retrofitted on fully completed machines, therefore a preliminary technical evaluation is recommended.
Thanks to its minimal component design, maintenance requirements are extremely low.
Supplied with:
- CE certification
- ATEX certification available upon request
If you are looking for a retractable cleaning head that ensures cGMP-compliant installation, full integration into processing equipment, and zero product interference, the RT111-AA is a highly specialized technical solution.
The Bolondi team is available to support you in evaluating the correct integration into your system or developing custom solutions based on your specific production requirements.
