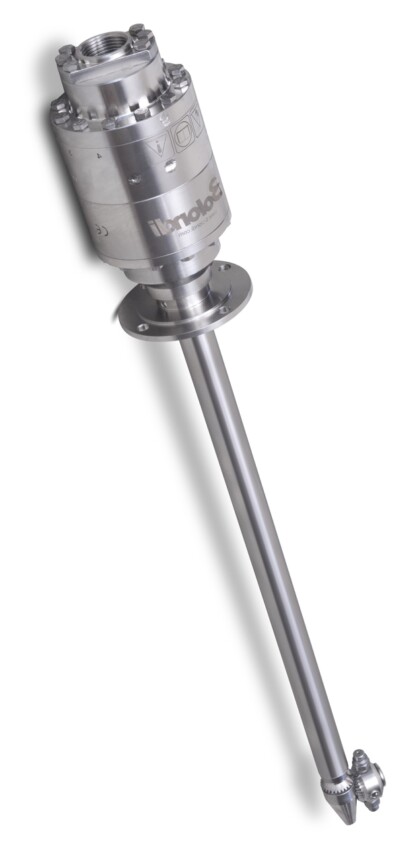

Bolondi XC061-AAH 3000 PSI IBC Cleaning Head Water Powered Self Spinning The XC061-AAH has a larger more advanced water driven “Aqua motor” with a variable speed diffuser. The rotational speed of the XC061-AAH can be adjusted by changing the speed position as indicated on outside of the cleaning head. | |
Material: | aisi 316 + bronze |
Flow: | max 60 l/min 16 us gpm |
Pressure: | 200 bar / 3000 psi |
Temperature: | 90°C. - 194°F. |
Spinning speed: | fast |
Filter: | 700 Micron |
Spray pattern: | cleaning sector 360° |
Min. pass through hole | 76mm |
Nozzles: | 2 - 4 / 1/8 NPT |
Complete cycle: | 15 - 25 Revolutions |
Complete cycle time: | 6 - 90 Seconds |
Weight: | 7.5 KG - 16.5 Lbs. |
Volumetric Self-Rotating Cleaning Head with Water-Driven Motor for Closed Containers
The XC061-A is a volumetric self-rotating cleaning head designed for cleaning bins, mixers, preparation vessels, and industrial machinery, where internal cleaning of closed containers requires optimal positioning and maximum jet effectiveness.
It is particularly suitable for the pharmaceutical, food, cosmetic, and chemical industries, where process control, reliability, and application flexibility are essential.
Advantages for the operator
- Water-driven motor (no external energy required)
- Operating pressure up to 200 bar
- Flow rate up to 60 l/min
- Customizable lance length
- Exposed nozzles selected based on application
- Configurable with 2 or 4 nozzles
The ability to customize both lance length and nozzle type makes this solution highly flexible and effective across a wide range of industrial setups.
Contact our Bolondi Team
Every system has unique requirements.
Our Bolondi team can support you in:
- defining the optimal length and configuration
- integrating the XC061A into your existing system
- developing fully customized solutions
Contact our Bolondi team to design the most suitable cleaning system for your application.
Installation, Maintenance and Certifications
The XC061-P is easily integrated into existing equipment.
It does not require any lubrication, and maintenance is limited to standard wear components, reducing operational costs and downtime.
Supplied with:
- CE certification
- ATEX certification
If you are looking for a volumetric rotating cleaning head with pneumatic motor, adjustable speed, and operating pressure up to 200 bar, the XC061-P provides a highly controllable, flexible, and safety-compliant solution.
The Bolondi team is available to support you in selecting the most suitable configuration or developing custom solutions tailored to your process requirements.
