Bolondi XC035-EEB 24V DC Electric Motor 360° Cleaning Head | |
Material: | aisi 316 - NBR - EPDM - Viton - Peek |
Flow: | 10 - 60 lt/min 2.6 - 15.85 usgpm |
Pressure: | 10 - 20 bar / 145 - 290 psi |
Temperature: | 90°C. - 194°F. |
Spinning speed: | fast |
Filter: | 700 Micron |

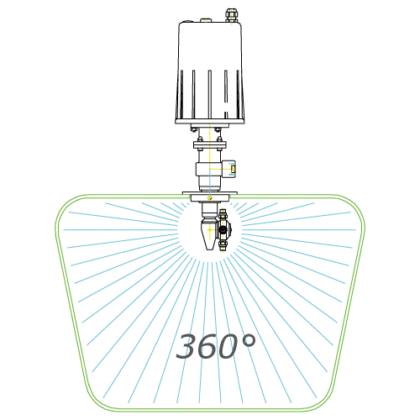

Spray pattern: | cleaning sector 360° |
Min. pass through hole | 76 mm |
Nozzles: | 2 - 4 |
Electric motor: | 24 volt |
Complete cycle time: | 108 Seconds |
Weight: | 7.5 Kg / 16.5 lbs |
The XC035-EEB is engineered for cleaning closed containers, featuring a 24V DC electric motor that allows precise selection and maintenance of constant rotational speed.
This ensures:
- rotation independent of flow rate variations
- improved control of the cleaning cycle
- more uniform and repeatable cleaning performance
It is the ideal solution for operators who:
- require precise control of rotational speed
- need a versatile and customizable cleaning system
- work with small and medium closed vessels
Advantages for the Operator
- 24V DC electric motor for controlled rotation
- Flow rate up to 60 l/min
- Operating pressure up to 20 bar
- Customizable lance length
- Configurable with 2 or 4 nozzles
- Seal-free nozzle holder for self-cleaning effect
The option to customize lance length and nozzle configuration makes this solution highly flexible and effective. The seal-free nozzle holder reduces critical wear points and enhances self-cleaning performance.
Maintenance and Certifications
The XC035-EEB is easy to install on existing equipment and is designed to ensure long-term reliability.
Maintenance is limited to standard inspection of wear components, thanks to its rational and robust construction.
Supplied with:
- CE certification
If you are looking for a volumetric rotating cleaning head with 24V DC electric motor, adjustable speed, and maximum configuration flexibility, the XC035-EEB provides a versatile and highly controllable technical solution.
Our Bolondi team is available to support you in selecting the most suitable configuration or developing custom solutions based on your specific system requirements.
