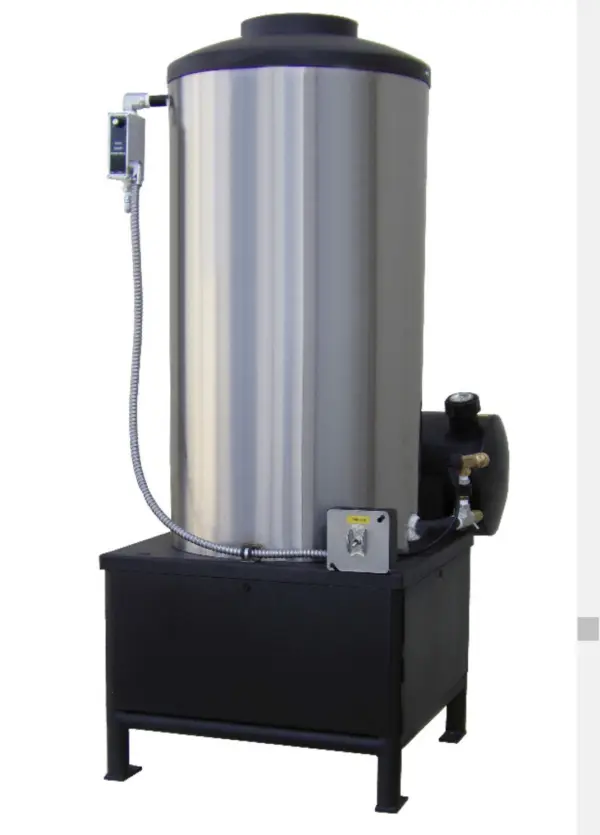

OIL FIRED
VERTICAL BURNERS
• 7 Gallon Poly Fuel Tank w/Fuel Gauge
• ST7 Flow Switch
• Panel Mount Thermostat on 115 VAC Units
• PAC Inline Thermostat
• Sch. 80 Black Pipe Heating Coil
• Black Powder Coated Industrial Grade Frame
• Pressure Relief Valve
• Safety Relief/Thermal Relief Valve
• Stainless Steel Coil Wrapper
115VAC FEATURES:
• SM Burner
• Panel Mount Thermostat on 115 VAC Units
• PAC Inline Thermostat
• Sch. 80 Black Pipe Heating Coil
• Black Powder Coated Industrial Grade Frame
• Pressure Relief Valve
• Safety Relief/Thermal Relief Valve
• Stainless Steel Coil Wrapper
115VAC FEATURES:
• SM Burner
• 15 Amp GFCI w/35’ Cord
12VDC FEATURES:
• SDC Burner
• Requires Group 24 Deep Cycle Battery (NOT included)
• Requires Group 24 Deep Cycle Battery (NOT included)
and an Engine with a High Amp Charging System
MODEL | GPM | BURNER | COIL | DIMENSIONS |
980115V | 5 - 7 GPM | SM - 115V. | 230 Ft. | 32Lx20Wx48H |
98012V | 5 - 7 GPM | SDC - 12V. | 230 Ft. | 32Lx20Wx48H |
990115V | 8 - 10 GPM | SM - 115V. | 260 Ft. | 34Lx25Wx56H |
99012V | 8 - 10 GPM | SDC - 12V. | 260 Ft. | 34Lx25Wx56H |
